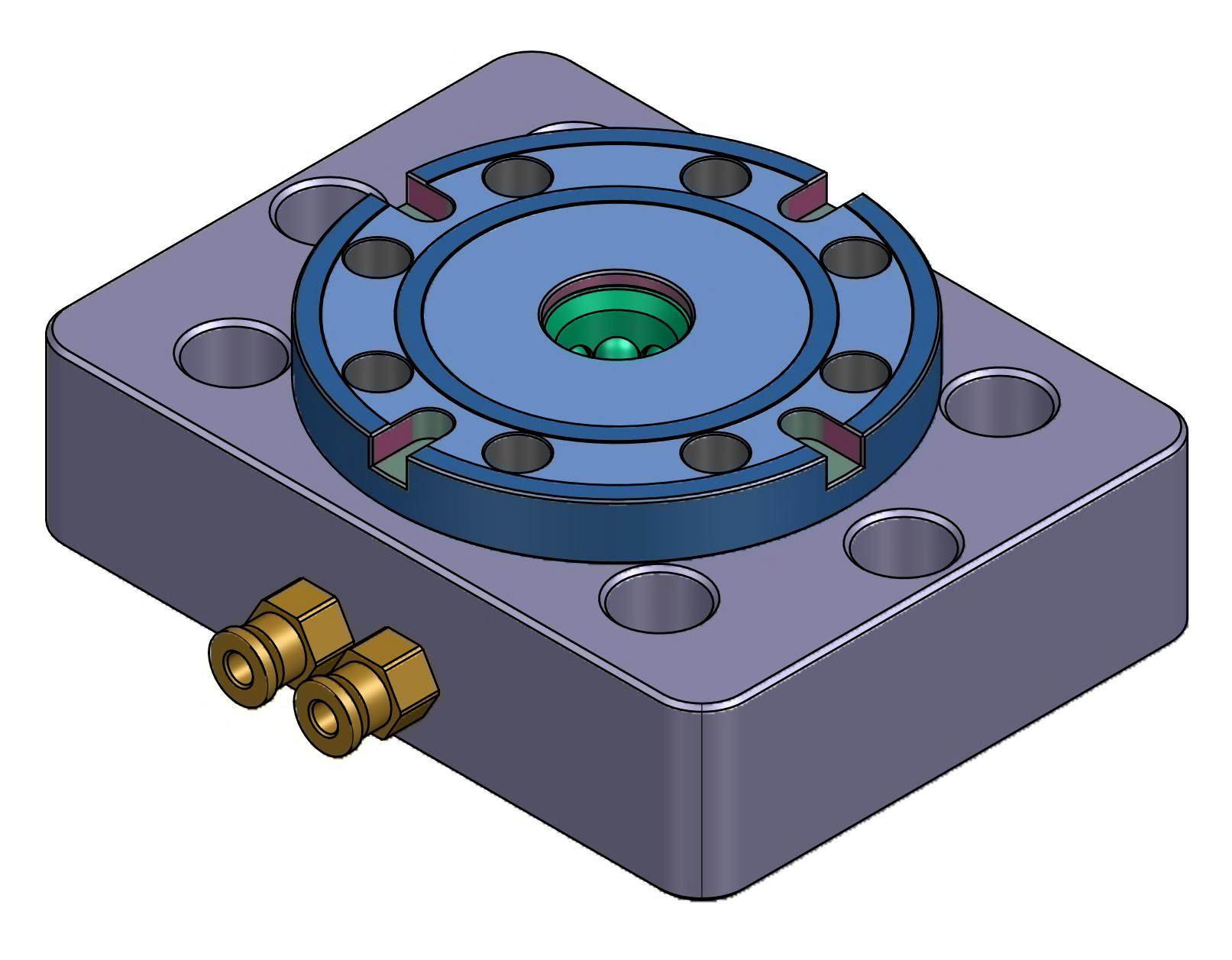

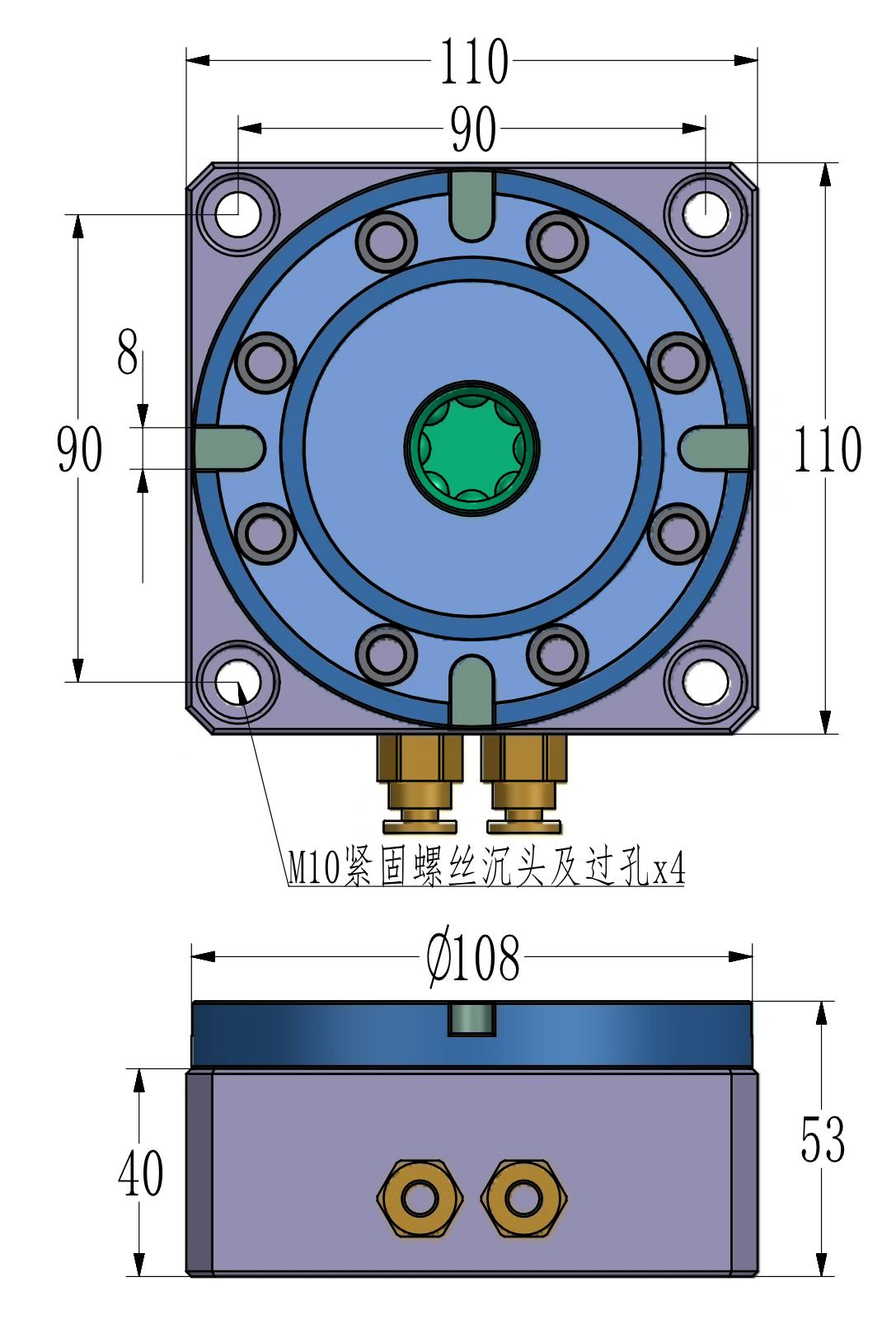

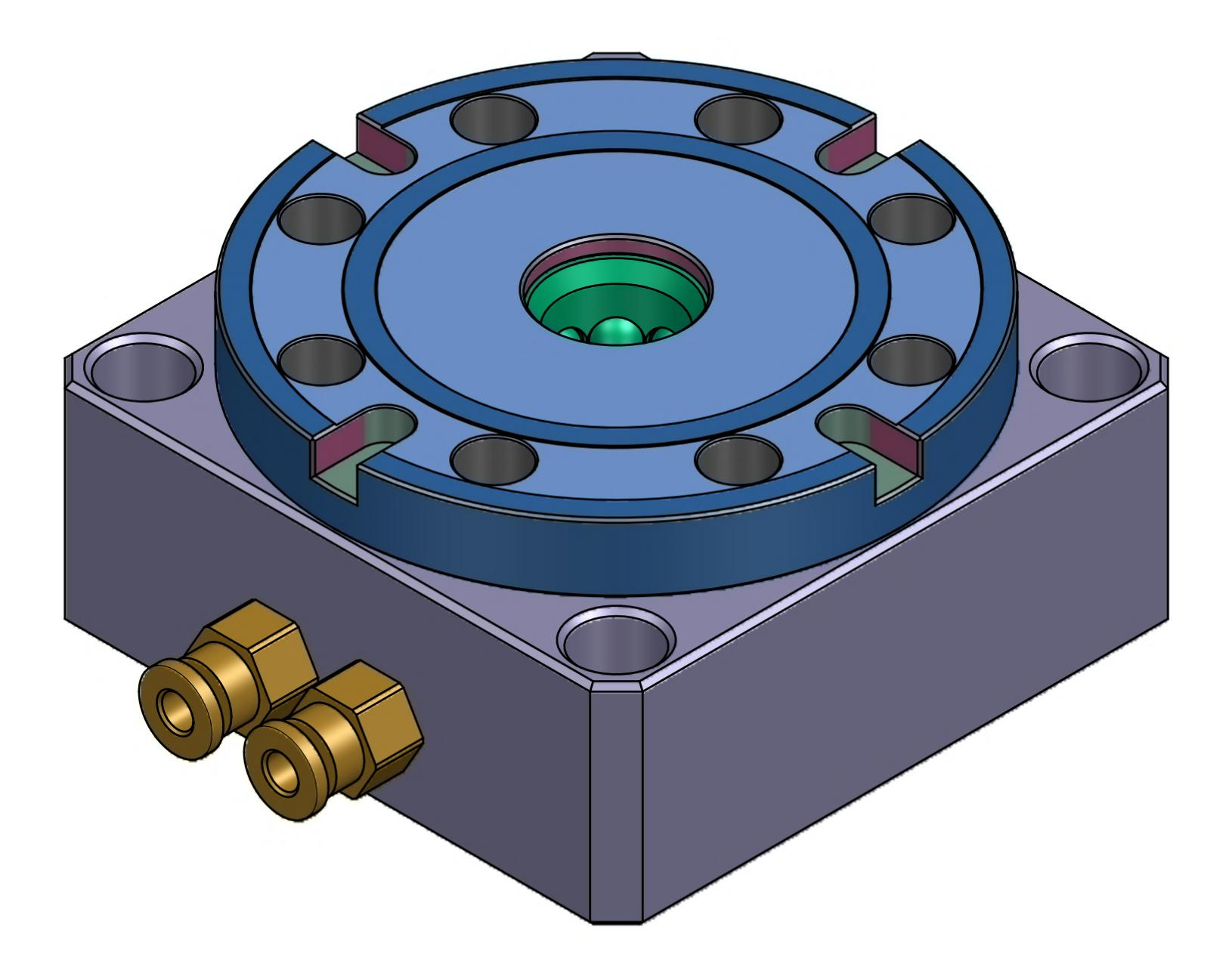

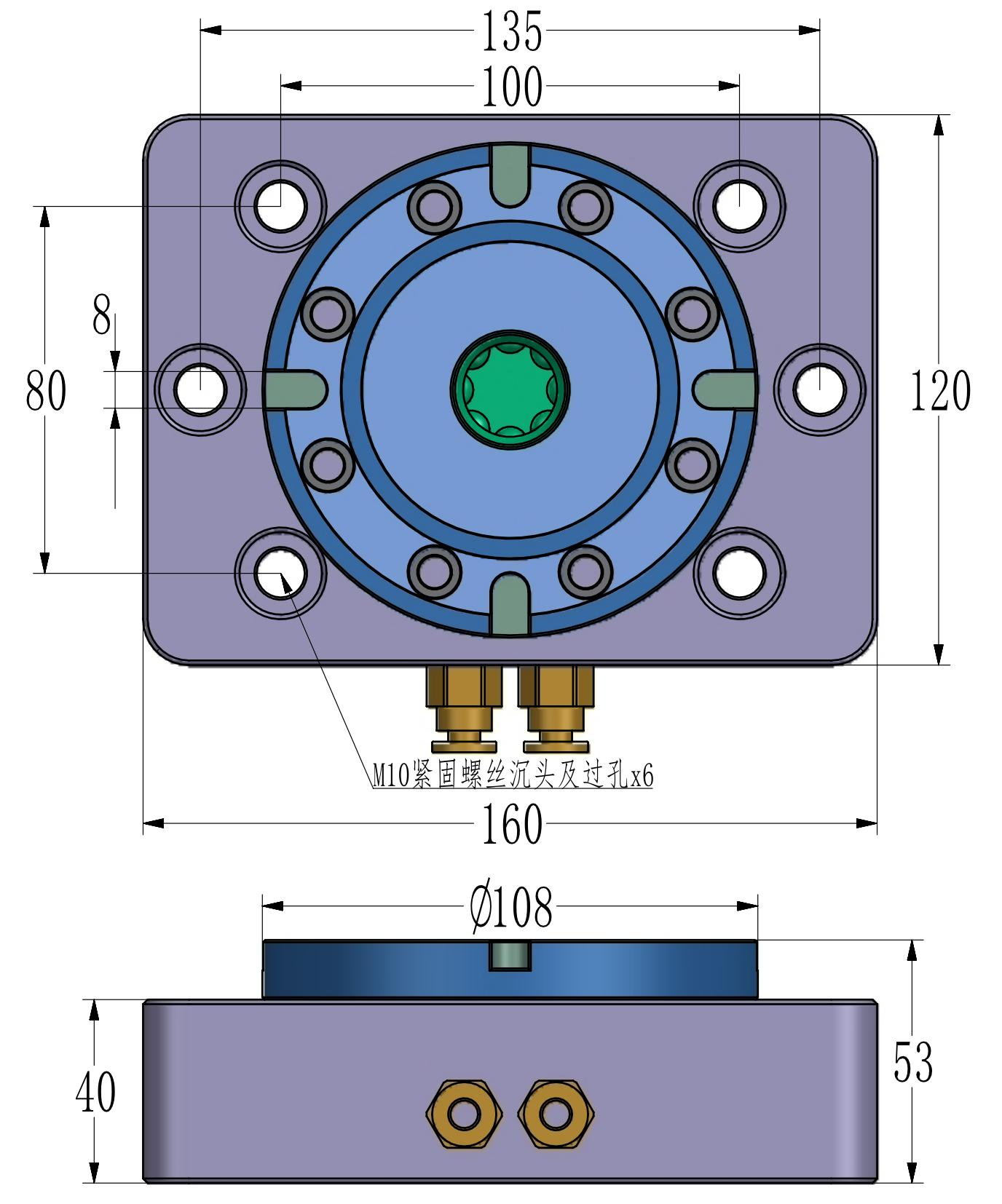

Model: 3A-110110/3A-110106/3A-110111 Double zero chuck
Center distance: 150mm, 200mm, 250mm
Unlock air pressure: 0.6Mpa, with cleaning and gas check function
Clamping force: up to 15000N after single chuck pressure
Repeated positioning accuracy: less than 0.005mm
Product Description:

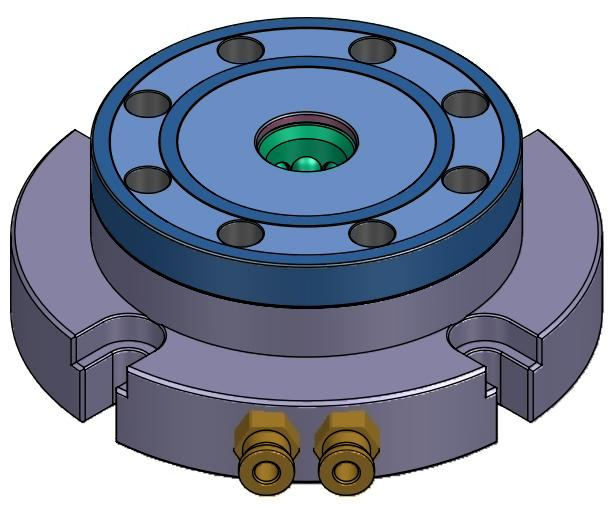

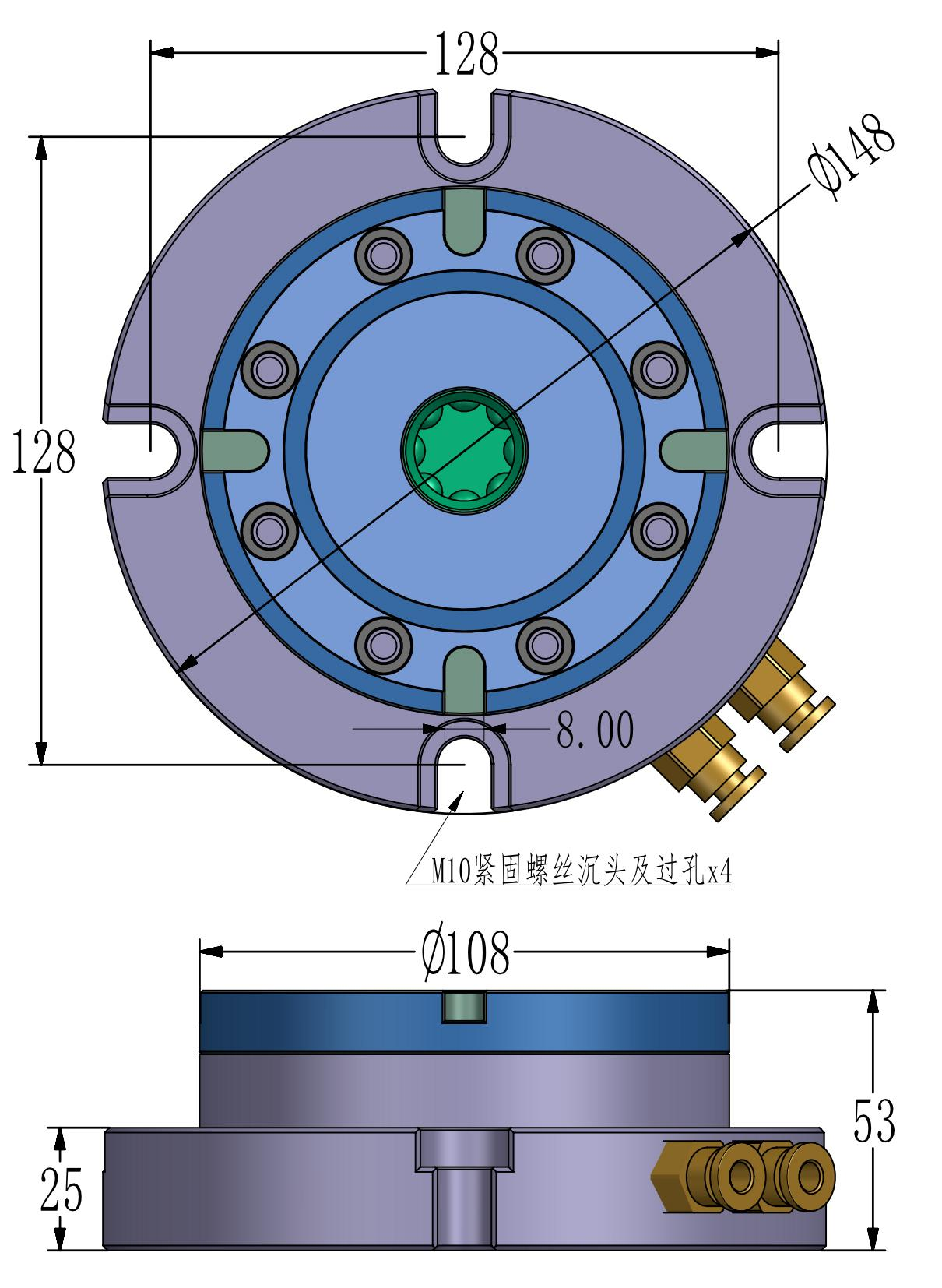

Model: Single zero setting chuck
Center distance: 150mm, 200mm, 250mm
Unlock air pressure: 0.6Mpa, with cleaning and gas check function
Clamping force: up to 15000N after single chuck pressure
Repeated positioning accuracy: less than 0.005mm
