The 90° right angle RockLock plate
is the perfect low cost solution for
multi-side machining. Machine 5
sides of a part without a 5 axis

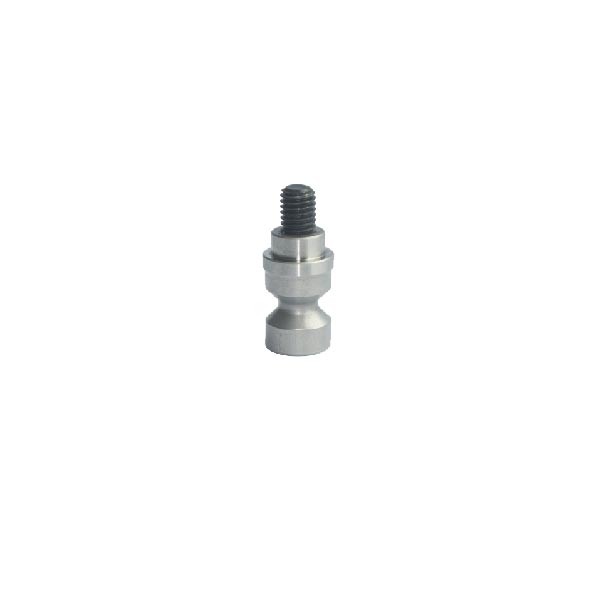

machine. The unit features pull studs
on the bottom so that it can be
mounted onto any 96mm RockLock
plate. It also has 2 counter bores
for traditional mounting to machine
T-slots at 4″ or 100mm.
Simply machine your material, unlock
the system, rotate the material, lock
the system and continue machining.
Includes 4x PS20F.
Repeatability of +/- 8 μm..

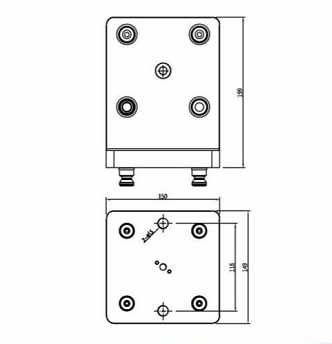

Size: 149.4mm x 158mm x 200mm
Spacing: RockLock PS20F or 2x M12 SHCS @
100mm - 101.6mm
Material Construction:
Aluminum (RL96A-90DEG)
