Version

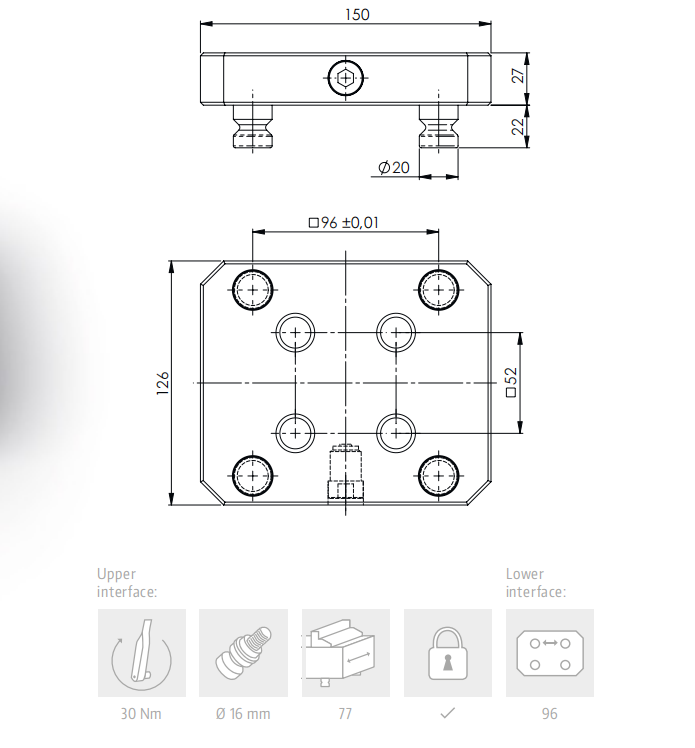

150x126x27mm,Resetting precisionLess than 0.005mm, use with φ16 drawbar, Set-up distance 52mm,Torque30Nm

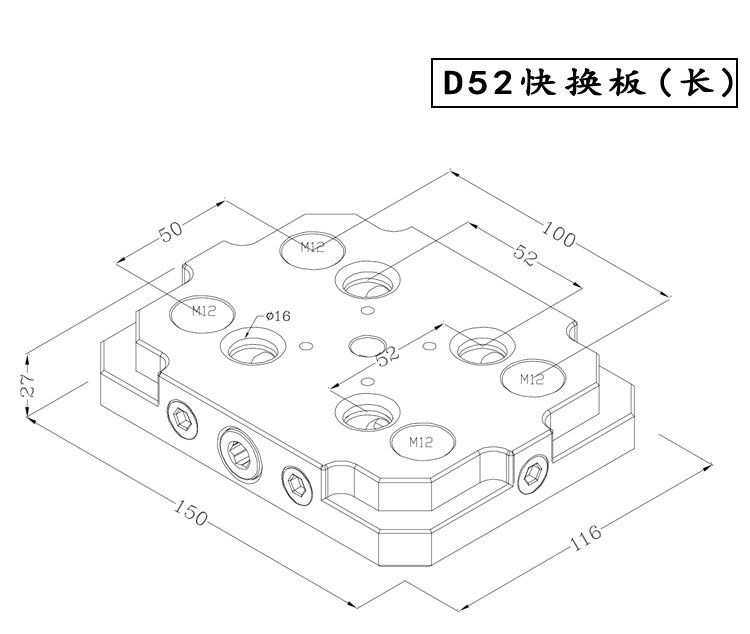

It can easily and quickly realize the conversion between the 52mm and 96mm hole positions of the spigot
Net weight 3.4kg
Version | 150x126x27mm,Resetting precisionLess than 0.005mm, use with φ16 drawbar, Set-up distance 52mm,Torque30Nm It can easily and quickly realize the conversion between the 52mm and 96mm hole positions of the spigot |
Net weight | 3.4kg |

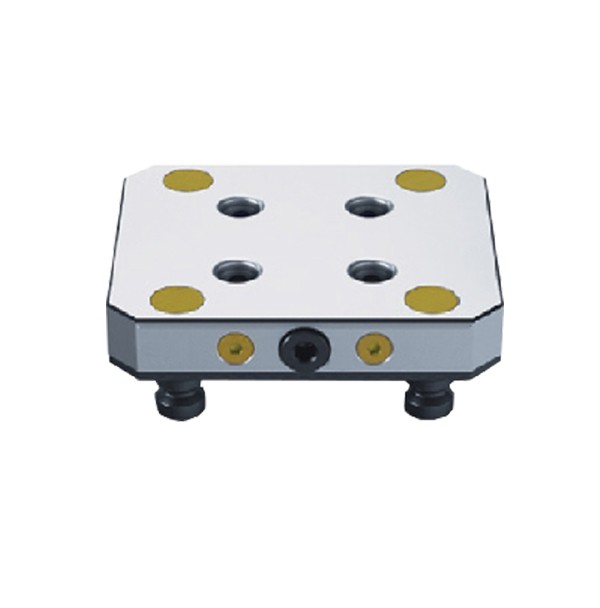

QUICK POINT® 52 ADAPTER PLATE 5 . 9 0 × 4 . 9 6 × 1 .0 6 ", W I T H C L A M P I N G S T U D S Ø 2 0 M M ITEM NO. DIMENSIONS WEIGHT 145160 5.90 × 4.96 × 1.06" (150 × 126 × 27 mm) 7.50 lbs (3.4 kg)
